Description

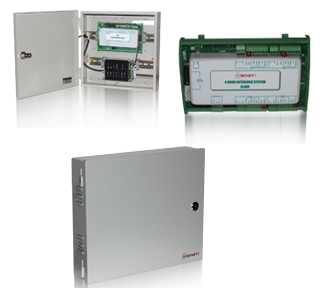

Door Interlock Controller
Field Programmable Door Interlock Systems
Compatible with any Access Controller
Up to 8 Door Interlock Systems
Din Rail compatible
No Software required

Features

Master & Slave Configuration (Max. 8 Doors can be controlled)
Can be interfaced with any access controller
Door Plate with 2 LEDs to indicate Status of the door (Door Release, Door Locked)
Programmable Interlock Logic using an External Keypad for Onsite Programming
Buzzer O/p for DOTL, Door Force Open and emergency, fire alarms
Integration with Fire panel-on receiving fire input from fire panel, all the lock connected to slaves in loop with master will get released

Technical Specifications

Specifications	Technical Specifications
	4 Door DIS Series	2 Door DIS
Door Release Outputs	4 o/p (Lock)	2 o/p (Lock)
Alarm Output	1 Buzzer o/p for Alarms	1 Buzzer o/p for Alarms
Control inputs	Fire	Fire
Control Relay Output	4	2
Expandable	Up to 8 door (using Slave Controller)	Not Expandable
Relay Contact Output	0.5 amp for 230 V AC /1.0 amp for 12 VDC	0.5 amp for 230 V AC /1.0 amp for 12 VDC
Supply Voltage	12 V DC	12 V DC
Current (amps)	5 Amps	2 Amps
Dimensions in mm ( W x L x D )	390 mm (L) X 90 mm (W) X 320 mm (H)	390 mm (L) X 90 mm (W) X 320 mm (H)

DIS Facia plate (Contact Type) Technical Specification:-

Specifications	Technical Specifications
LED Indication	Door Open LED (Green)
	Door Lock LED (Red)
Facia Plate Dimension	90mm (L) X 35mm (W) x 90mm (H)
Wall cutout Dimension	48mm (L) X 35mm (W) X 70mm (H)
Alarm Output	1 Buzzer o/p for Alarms
Input	Door Open Switch or Egress Switch

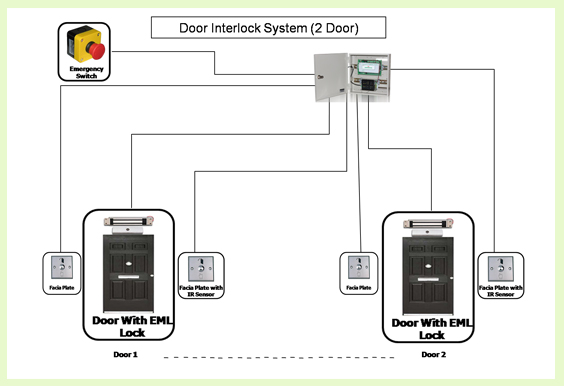

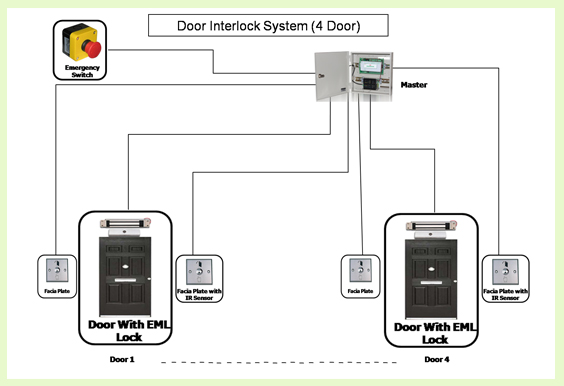

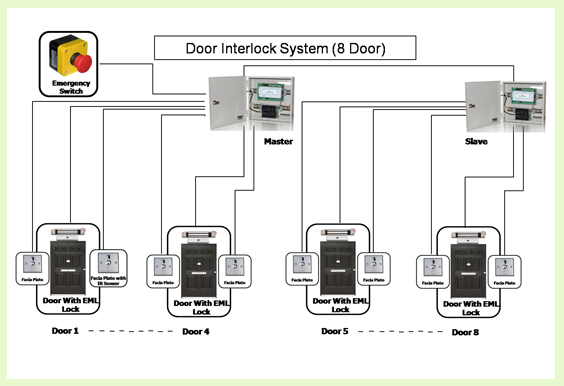

Line Diagram

Ordering Info

Door Interlock System Series
Model No.	Description	Max. No. of Door	Max. No. of Reader	Compatible software
DIS – 4X	TCP/IP based 2 Door / 2 Reader Channel Access Controller + Battery back-up Power Supply & Metal Enclosure with Advance Security Features.	4	NA	SMN Series,SML Series,SBN Series,STN Series, SBL Series
DIS - 4SV	4 Door DIS(Slave) with inbuilt power supply	4 (for extra 4 Door)	NA	"
DIS – 2X	2 Door DIS with inbuilt power supply. Will be used only for a 2 Door DIS configuration.	Only for 2 door	NA	"
DIS - FP	Single Front Facia Plate consisting of Push Buttons(Door Release) & indicator LED to show the door staus	2 Qty for each door	NA	"
DIS-ES	Emergency switch to be given with DIS controller.	1 for each Set	NA	"
