Features

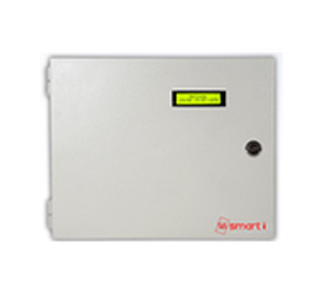

- smartXS is a TCP/IP based intelligent network controller.TCP/IP is the key of technology these days. Risk per door is lowest in TCP/IP based controller because there is no dependability on other controller.
- It’s a industries versatile controller which is compatible with any standard wiegand reader
- The processing speed of the controller is very fast; as controller is equipped with industry’s fastest processor – 32 bit RISC ARM Processor
- smartXS has 2 types of controller 2 Door controller and 4 Door controllers.
- Stores 10,000 Cards and 30,000 Event/transaction buffers
- Fire inputs which enables all the doors to be opened up in case of Emergency
- Intrusion Inputs which enables all the door to be closed in case of Intrusion
- Field Upgradable – Flash memory for easy firmware upgrade through existing LAN network
- Advance access control features like Anti-passback, Facility Code, Time Zones, Emergency card, intrusion card, occupancy control, and Delay time between 2 consecutive swipe are available
Technical Specifications
| Particulars |
Technical Specifications |
| |
SMN230 Series |
SMN430 Series |
| System Features |
| Memory |
4 MB |
| Door Control |
2 |
4 |
| Number of Readers |
2 |
4 |
| Control Relay Output |
2 |
4 |
| Event Buffers |
30,000 |
| Number of Users |
10,000 |
| Reader Interface |
26/32/34/35 Wiegand |
| Input Points |
1 Fire Input |
| LCD |
YES |
| Keypad |
12 Key Numeric |
| Inputs/Outputs |
2 I/p (Door Status, Egress), 2 O/p (DOTL, Lock) |
4 I/p (Door Status, Egress), 4 O/p (DOTL,Lock) |
| Communication ports |
TCP/IP |
| TCP/IP |
| Controller ID |
Up to 128 |
| Controller No. |
Upto 9,999 |
| Baud rate |
9600bps(Default) |
| Power Supply |
12V DC:2A max |
12VDC: 5A Max |
| Color |
Siemens Grey |
| Battery Backup Power |
In-built |
| Supply |
| Biometrics Connectivity |
Yes (Wiegand) |
| Approvals |
CE |
| Access Control Features |
| Facility Code |
Available |
| Time Zones / Access Levels |
63 + 1 (Free Time Zone)/Unlimited |
| Anti – Passback |
Hard, Soft, Area wise, Escort, User wise |
| Holiday Setting |
42 |
| Time Zone Slots |
4 slots per day |
Line Diagram
Software
smartENGINE is Smart-I’s Access Management Software. Apart from small offices it is also suited for large-sized, complex areas equipped with a TCP/IP Local Area Network Organizations with their H.O., Branch offices & manufacturing units situated geographically at different locations can be controlled from Central Location with Smart I Access Control Systems installed. These devices need to be configured online and download data from different locations to a Single/Centralized location.
smartSOFT is completely parameterized time & Attendance software that allows user to define the rules as per the organizational policies. Software has all the functions which is required for any organization, ie; Shift Management, Leave Management, OD, OT, etc.
Ordering Info
| Ordering Info |
| Model No. |
Description |
Max. No. of Door |
Max. No. of Reader |
Compatible software |
| SMN230 |
TCP/IP based 2 Door / 2 Reader Channel Access Controller + Battery back-up Power Supply & Metal Enclosure with Advance Security Features. |
2 |
2 |
smartENGINE Advance Series, smartSOFT Series |
| SMN430 |
TCP/IP based 4 Door / 4 Reader Channel Access Controller + Battery back-up Power Supply & Metal Enclosure with Advance Security Features. |
4 |
4 |
" |
