Features
- smartXS NG is a new Din rail standard TCP/IP based multidoor Access Control Panel which controls upto 4 Doors and 8 Readers.
- The processing speed of the controller is very fast; as controller is equipped with industry’s fastest processor – 32 bit RISC ARM Processor
- Stores 30,000 Users and 60,000 Event/transaction buffers
- Fire inputs which enables all the doors to be opened up in case of Emergency
- Intrusion Inputs which enables all the door to be closed in case of Intrusion
- Field Upgradable – Flash memory for easy firmware upgrade through existing LAN network
- Advance access control features like Reader wise Tamper Alerts, Event Alert based network protocol, Multi Card Format Supported, etc...
Technical Specifications
| Particulars |
Technical Specifications |
| Model no. |
SMNG480 |
| Applications |
Access Control System |
| Technical Specification |
| CPU |
ARM 32 Bit RISC Processor |
| Memory
|
Up to 8 MB (Flash) |
| No. of Doors |
4 |
| No. of Readers |
8 |
| Events/Transactions |
60,000 |
| No. Users |
30,000 |
| Reader Interface |
Weigand (26 bit to 56 bit) |
| Input |
12 inputs
(4- Door Status, 4- Egress, 1- Fire & 1- intrusion and 2 Extra input) |
| Output |
(4 - DOTL, 4 – Lock) |
| Communications Port |
TCP/IP,RS485 |
| Door Interlocking/Man Trap |
Yes |
| Fire Integration
|
Yes |
| Intrusion Integration |
Yes |
| LCD |
16X2 LCD Display |
| Keypad |
4X3 Key with soft keypad |
| Baud Rate |
9600bps (Default) |
| Controller ID |
Unlimited |
| Language
|
English |
| Power Supply |
12 V DC/ 5A ,
POE (optional, only For 2 Door Controller) |
| Enclosure |
Optional (Metal Enclosure) |
| Mounting |
Din Rail (Metal Enclosure optional) |
| Access Control Features |
| Facility Code |
Available |
| Time Zone / Access Levels |
63 + 1 (Free Time Zone)/Unlimited |
| Time Zone Slots |
4 slots per Day |
| Anti-Passback |
Hard, Soft, Escort (Reader Wise)> |
| Holiday Settings |
42 |

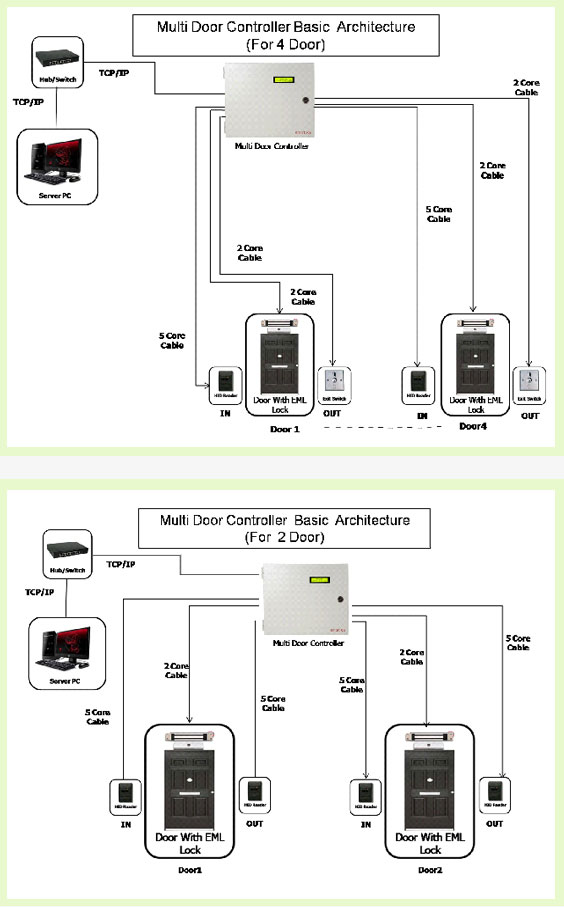

Line Diagram
Software

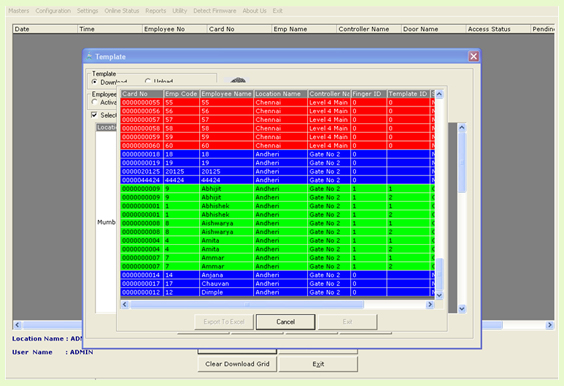

smartENGINE is Smart-I’s Access Management Software. Apart from small offices it is also suited for large-sized, complex areas equipped with a TCP/IP Local Area Network Organizations with their H.O., Branch offices & manufacturing units situated geographically at different locations can be controlled from Central Location with Smart I Access Control Systems installed. These devices need to be configured online and download data from different locations to a Single/Centralized location.

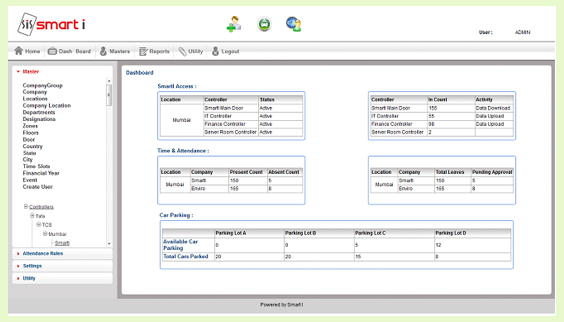

smartSOFT is completely parameterized time & Attendance software that allows user to define the rules as per the organizational policies. Software has all the functions which is required for any organization, ie; Shift Management, Leave Management, OD, OT, etc.
Ordering Info
| Ordering Info |
| Model No. |
Description |
Max. No. of Door |
Max. No. of Reader |
Compatible software |
| SMNG480 |
TCP/IP based 2 Door / 2 Reader Channel Access Controller + Battery back-up Power Supply & Metal Enclosure with Advance Security Features. |
4 |
8 |
smartENGINE Advance Series, smartSOFT Series |
