Hardware Smart Personlizer

Description

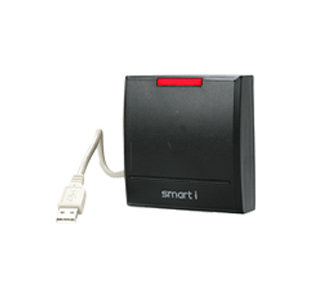

smartPERSONALIZER SCP 60 Mifare based smart card reader/writer make access control and read/write application more powerful, more versatile, and most importantly, offer-enhanced security through encryption and mutual

Features

  • Provides bi-directional RS-232 serial port to provide connection to PC or micro controller
  • 13.56 MHz based interface that meets ISO 14434A (Mifare) standards
  • Personalized Facility code and card number
  • All RF data transmission between the card and the reader is encrypted using a secure algorithm
  • Advanced Key management systems to reduce the risk of compromised data or duplicate cards
  • Supports ISO 14443A (Mifare) Standards
  • Indigenous development and manufacturing result in better and faster support
  • Proprietary card data personalization / protocol implementation
  • Robust and reliable at competitive price

Technical Specifications

Particulars Technical Specifications
System Features SCP 60
Dimension (mm) 80W X 83 H X 21 D
Transmit Frequency 13.56Mhz
Card (Transponder ) Mifare Series (ISO 14443A)
Card Read Time 0.1 sec
Output Interface USB
Baud Rate 38,400 bps
Material ABS Plastic
Power Supply (default ) 8V to 12V DC
Colour Black
SDK Available
