Software Smart Engine

Description

IP based Multidoor Controller
Compatible with any Wiegand Reader
32 Bit RISC ARM processor
4 Door 8 Reader Controller
30000 users and 60000 transactions

Features

    smartENGINE is Smart-I’s Access Management Software. Apart from small offices it is also suited for large-sized, complex areas equipped with a TCP/IP Local Area Network Organizations with their H.O., Branch offices & manufacturing units situated geographically at different locations can be controlled from Central Location with Smart I Access Control Systems installed. These devices need to be configured online and download data from different locations to a Single/Centralized location.

    smartENGINE is a complete Access Management Software specially designed for Advance Series products. This software has unique features of configuring various parameters at reader level instead of controller level as in smartENGINE. The Access level and various other parameters are defined for individual reader rather than controller, thus offering more flexibility in defining the access policy of an organization. Keeping the scalability in mind this software is designed and developed for new product or controllers that would be introduced in future by smart I.

    The key features of Advance series includes Blacklisting of employee, Bulk upload of cards, Duress card/finger implementation, user definable LCD Massages, multiple time zones, auto download reset command from the software, self backup of database, visible online status, displaying short massages, delay time to access successive punches from the same user, definable rights for keypad, setting of access levels, finger template management, restriction of download from particular computer only using IP address AMS supports various backend, as per end user’s requirement viz MS-Access/MS-SQL/Oracle/MS-SQL Express 2008.

    Thus AMS’s various features enable you to manage your Attendance/Access Controller Systems more easily and efficiently than ever before.

    smartENGINE comes in 2 version: - smartENGINE Lite and smartENGINE Advance.
  • smartENGINE Lite:- This Access Management Software works with XSlite series. It is single location software used to cater small organizations with maximum strength of 1000 employees.
  • smartENGINE Advance: This Access Management Software works with Advance Series of controllers. It is a Multi-Location, Multi User; higher end software with Advance features like Email on critical events, IP camera integration etc.

Technical Specifications

Description

smartENGINE Lite

smartENGINE Advance

System Features

Multi User

N.A

Available

Multi Company

Available

Available

Multi Location

Not Available- Single Location

Available

Database Supported

MS-Access, SQL Server

Ms-Access, SQL Server

Employees Supported

MS-Access-500
SQL Server-1000

MS-Access-150
SQL Server-Unlimited

Employee Photograph

Available

Available

Visible online status when connected to PC

N.A

Available

Displaying Short Messages

N.A

Available

Fingerprints Templates Management.

N.A

Available

Delay time to access successive punches from the same user

N.A

Available

Key Features

Bulk Upload of cards

N.A

Available

Finger or card Identity for Admin login

N.A

Available

Duress Finger

N.A

Available

User definable LCD messages

Available

Available

Time Zones.

16

64

Time Zone per user

Single

Multiple

Anti Passback

Local

Hard, Soft, Escort

Anti Passback allocation

Controller wise

User  wise

Holidays

16

42

Auto Downloading

Available

Available

Reset command from software

N.A

Available

Backup of database

Manual Backup is available

Scheduled backup on particular time and date

Report Formats

Excel, txt

Excel, txt, pdf, crystal report, csv, xml

Security Features

Audit Log Available

Available

Available

Password Protected

Available

Available

Definable User rights

Available

Available

Restriction of downloading from a particular computer only using IP address

N.A

Available

Reports

Access Report

Available

Available

IO Entry Report

Available

Available

FILO Report

Available

Available

Event Report

Available

Available

Unknown Transaction Report

Available

Available

Employee Report

Available

Available

Employee Access Level Report

Available

Available

Audit Report

Available

Available

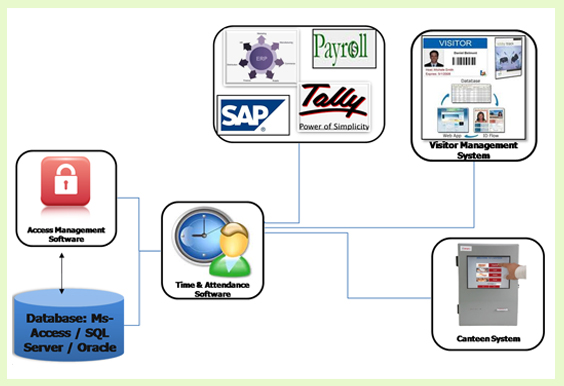

Line Diagram

Software



smartENGINE is Smart-I’s Access Management Software. Apart from small offices it is also suited for large-sized, complex areas equipped with a TCP/IP Local Area Network Organizations with their H.O., Branch offices & manufacturing units situated geographically at different locations can be controlled from Central Location with Smart I Access Control Systems installed. These devices need to be configured online and download data from different locations to a Single/Centralized location.



smartSOFT is completely parameterized time & Attendance software that allows user to define the rules as per the organizational policies. Software has all the functions which is required for any organization, ie; Shift Management, Leave Management, OD, OT, etc.

Ordering Info

smartENGINE' Advance Series

Model No.

Description

Users Limitations

Database

Compatible  Controller

SSE10 - PT

smartENGINE' data downloading software (Professional Edition) with  Ms-Access database (Upto 500 Users)- Standalone Version

500

Ms-Access

SMN Series,SBN Series,STN Series

SSE23 - AS-1000U

smartENGINE' data downloading software (Server License) (Advance Edition) with  MS SQL database (Upto 1000 Users).SQL Licence in Customer Scope.

1000

SQL

,,

SSE23 - AC-1000U

smartENGINE' data downloading software (Client License) (Advance Edition) with  MS SQL database  (Upto 1000 Users)..SQL Licence in Customer Scope.

1000

,,

,,

SSE23 - AS-1500U

smartENGINE' data downloading software (Server License) (Advance Edition) with  MS SQL database (Upto 1500 Users).SQL Licence in Customer Scope.

1500

,,

,,

SSE23 - AC-1500U

smartENGINE' data downloading software (Client License) (Advance Edition) with  MS SQL database  (Upto 1500 Users)..SQL Licence in Customer Scope.

1500

,,

,,

SSE23 - AS-2000U

smartENGINE' data downloading software (Server License) (Advance Edition) with  MS SQL database (Upto 2000 Users).SQL Licence in Customer Scope.

2000

,,

,,

SSE23 - AC-2000U

smartENGINE' data downloading software (Client License) (Advance Edition) with  MS SQL database  (Upto 2000 Users)..SQL Licence in Customer Scope.

2000

,,

,,

SSE23 - AS

smartENGINE' data downloading software (Server License) (Advance Edition) with  MS SQL database .SQL Licence in Customer Scope.

Unlimited

,,

,,

SSE23 - AC

smartENGINE' data downloading software (Client License) (Advance Edition) with  MS SQL database .SQL Licence in Customer Scope.

Unlimited

,,

,,
