Home Smart I Systems Access Control Solutions SmartXS-1U

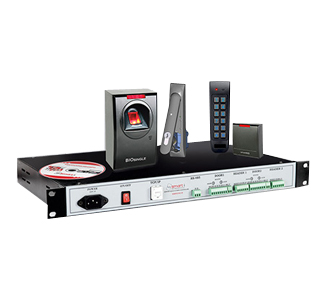

SmartXS-1U

Description

To further ensure security of the invaluable data stored in the servers, Datacenters need Access Control at individual rack level aswell. smartXS-1U helps you do that.

smart i also offers the option of a Climate Monitoring Module in smartXS-1U

KEY BENEFITS

  • The smartXS-1U TCP/IP based 2 Door Access Controller makes it possible to individually control access to any Server Rack, separately for the Front door (the Cold Aisle) and the Rear Door (the Hot Aisle).
  • smart I can support retro fitting on existing Server Racks in conjunction with the original rack manufacturers.

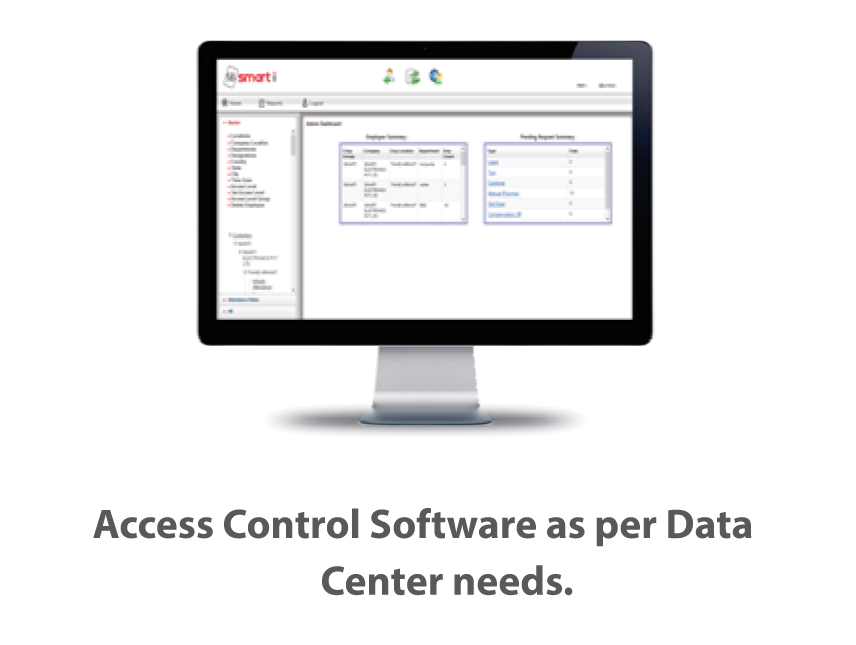

  • The dedicated Datacenter Access Control Software Application is designed to suit specific security needs of the datacenters with SNMP Alerts for the IT System Administrator.
  • Inbuilt Web Server for remote Device Configuration, User Addition/Deletion & to view Transactions.
  • Value added CCTV integration with Access Control events supports IT security audits of the datacenter.

Features

  • Rack and Door Specific Access Control:- smartXS 1U, is rack mounted and makes it possible to exercise selective rack as well as door specific control to decide who can access which door of which rack and when. It handles 2 Locks, Front and Back, of a Server Rack simultaneously and access can be configured for users' rights as follows:
    • User Group1:Access toboth the doors of the rack (Front&Back)
    • User Group2:Access only tothe front door of the rack
    • User Group3:Access only tothe rear door of the rack
  • Retro Fitting on existing Racks:- smart I can support retro fitting on existing Server Racks in conjunction with the original rackmanufacturers.
  • Further Data Security:- The IP address of the authorized computer is mapped with that of the Controller, making the downloading of the data even more secure.
  • SNMPAlerts:- SNMPAlerts generated for various events i.e. UnauthorizedAccess,DOTL,DoorForce Open, etc.
  • Inbuilt Web Server:- For remote device configuration, User addition & to view Transactions
  • Fingerprint Template Management Through Panel:- Smart I Biometric Reader's Fingerprint Template management can be done through controller's RS 485 port. No Extra Converter or extra TCP/IP Port required for templatemanagement
  • CCTV Integration:- One of the fastest Event Alert based network protocol implemented for value added features i.e.;CCTVIntegration toverify/identify security audit.
  • Multi card Format Supported:- Compatible with all the latest card technologies eg; HID Iclass, HID PROX,Mifare, EMProx etc

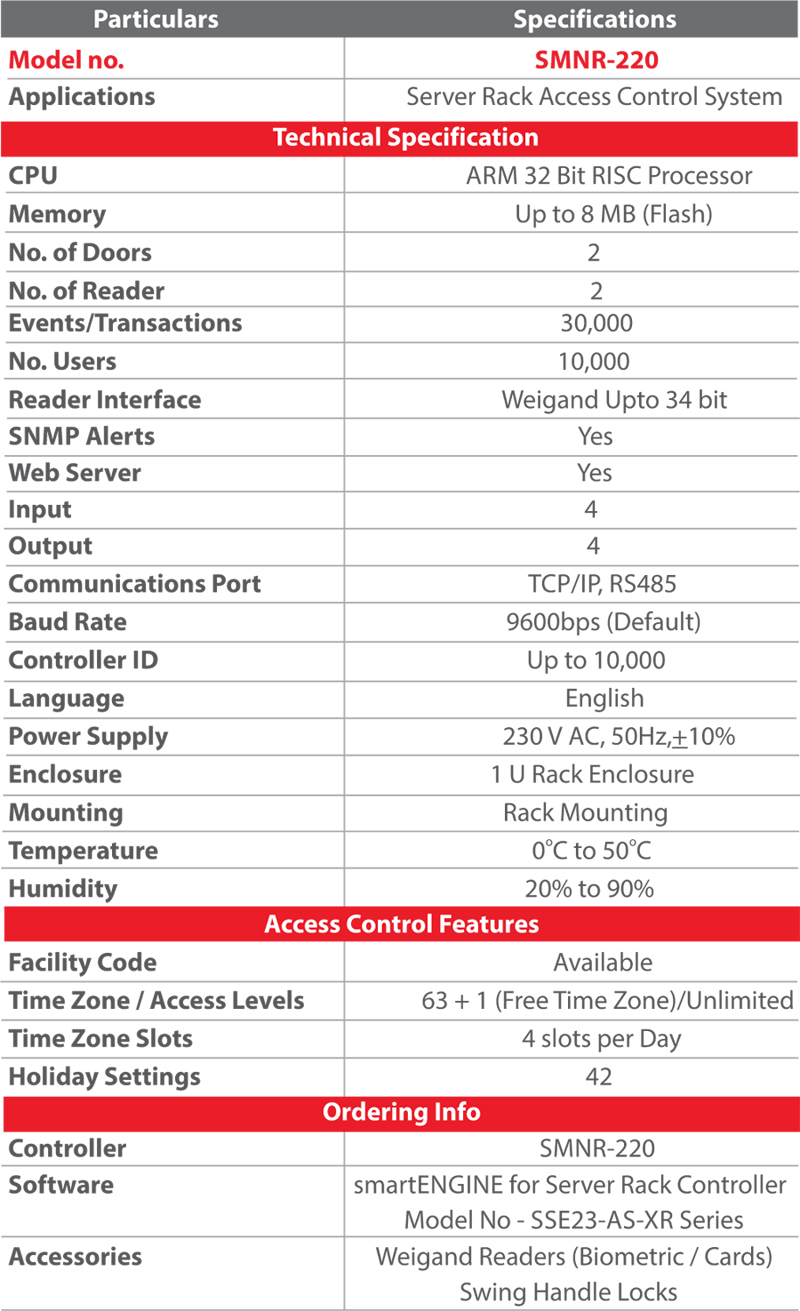

Technical Specifications

Spec

Software
