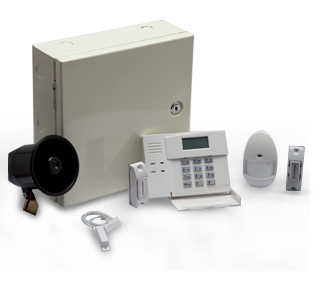

Eurovigil Intrusion Alarm System Hybrid

Description

Your home should always be safe, whether you are present in it or out on a trip. The Vista Control Panel gives your home complete security as it seamlessly integrates multiple wired and wireless security sensors which are in conjunction with each other. It provides your home with complete and convenient protection right after a simplified installation. With Vista Control Panel your house is safe even when you are in office or on a holiday.

Features

  • 8 Zones Expandable to 48 Zones
  • 2 Partitioned Panel
  • Fire Ready Panel
  • Remote/Local Arming/Disarming through Internet
  • Bell and Phone Line Cut Supervision
  • Forced Alarming
  • RF Jam Detection
  • Remote Programming Lock Options
  • E-Mail Alarm Notification and Video Alarm Verification
  • Night Stay Alarming

Technical Specifications

Dimensions 261 x 178 x 40 in mm (W x D x H)
Electrical Aux. power 12VDC, 600mA maximum, Seven hour standby at 400mA aux.load with four hour battery, 16.5VAC/25VA transformer, Alarm output 12VDC, 2.0 amps max, For UL installations, combined, aux. and alarm output cannot exceed 700 mA.
Input Voltage 230 V AC, 50 Hz.
Output Control Supports up to four relay boards 9 (up sto 16 relays), Optional X-10 transformer / interface
Wattage 7 Watts
Zones Eight hardwired zones (15 with zone doubling), Selectable response 10msec, 350 msec, 750 msec, Assignable to any partition, 20 selectable zone types plus four configurable zone types, Programmable swinger suppression

Note: Technical Specifications are subject to change without prior notice.

Devices

MOTION DETECTOR (PIR)
  • Dual PIR sensors incorporating high density digital analysis
  • Multi-Level signal processing with a vertical interleaving beam pattern
  • Immune to pets weighing upto 85lbs/38Kg

lease Note: This device is not a part of the Standard Package. Available as an accessory at an additional cost.



Note: Technical Specifications are subject to change without prior notice.

GLASS BREAK DETECTOR
  • Glass Break detector uses latest technology to provide faster response and increased false alarm immunity
  • Easy to install and adjustable sensitivity setting

lease Note: This device is not a part of the Standard Package. Available as an accessory at an additional cost.

Note: Technical Specifications are subject to change without prior notice.

DOOR WINDOW TRANSMITTER WITH MAGNET
  • Magnetic contacts are door positions sensors, which can be installed on doors, windows, cupboards, air-conductor ducts, safes and rolling shutters

lease Note: This device is not a part of the Standard Package. Available as an accessory at an additional cost.



Note: Technical Specifications are subject to change without prior notice.

HOOTER


Note: Technical Specifications are subject to change without prior notice.
